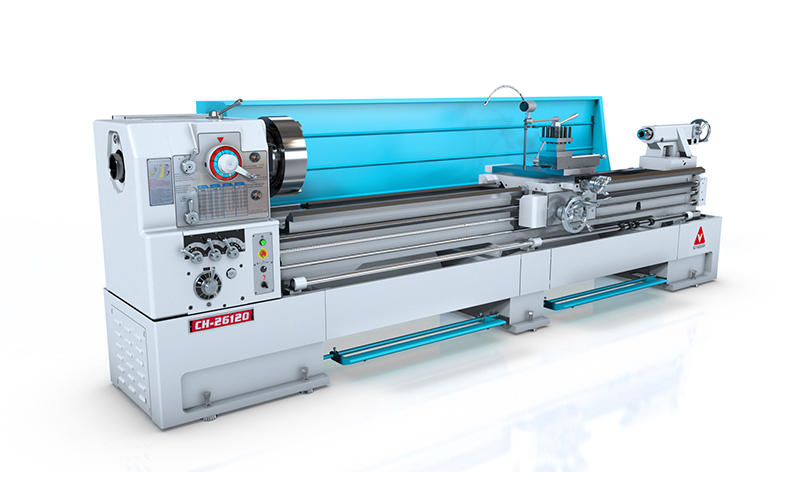

Prodajni program SUNMASTER CH-22/26/30 Specifikacije Standardna oprema Dodatna oprema Model CH-2260 / 2290 / 22120 / 22160 / 22200 CH-2660 / 2690 / 26120 / 26160 / 26200 CH-3060 / 3090 / 30120 / 30160 / 30200 Capacity Swing over bed 560 mm (22") 660 mm (26") 760 mm (30") Swing in gap 797 mm (31.37") 892 mm (35.11") 990 mm (38.97") Swing over cross slide 340 mm (13.38") 445 mm (17.51") 548 mm (21.57") Gap width in front of faceplate 270 mm (10.63") Distance between centers 1500 mm (60"), 2300 mm (90"), 3000 mm (120"), 4000 mm (160"), 5000 mm (200") Width of bed 400 mm (15.75") Top slide travel 228 mm (8.98") Cross slide travel 400 mm (15.75") Headstock & Main spindle Spindle nose type D1-11 Spindle center sleeve MT#7 x MT#5 Spindle bore Φ104 mm (4.094") Spindle speed 12 steps Speed range (60 Hz) 4P: 13, 20, 30, 47, 70, 105, 150, 230, 340, 530, 800, 1200 RPM Threads and Feeds Whitworth threads kinds / range 44 Kinds / 2 ~ 72 T.P.I. Metric threads kinds / range 39 Kinds / 0.2 ~ 14 mm Diameter of leadscrew Φ45 mm (1.77") Pitch of leadscrew 4 TPI, P = 6 mm Longitudinal feeds Metric: 0.035 ~ 0.98 mm / rev (P = 6); INCH: 0.0012 ~ 0.039" / rev (4 TPI) Cross feeds Metric: 0.011 ~ 0.296 mm / rev; INCH: 0.0004 ~ 0.0117 / rev Tailstock Quill diameter Φ80 mm (3.15") Quill travel 250 mm (10") Taper of center MT # 5 Motor Main spindle Std.: 15 HP (11.25 kW) Opt.: 20 HP (15 kW) Coolant pump 1/8 HP Measurement Weight Approx 60" 2400 2410 2522 Net weight (KG) 90" 2900 2910 3022 120" 3100 3110 3222 160" 3600 3610 3722 200" 4100 4110 4222 Packing size length 3255 mm (128.14") / 4055 mm (159.64") / 4755 mm (187.2") / 5755 mm (226.57") / 6755 mm (265.94") Width x Height Width: 1200 mm (47.2 "); Height: 1500 mm (59")
SUNMASTER CH-22/26/30 Specifikacije Standardna oprema Dodatna oprema Model CH-2260 / 2290 / 22120 / 22160 / 22200 CH-2660 / 2690 / 26120 / 26160 / 26200 CH-3060 / 3090 / 30120 / 30160 / 30200 Capacity Swing over bed 560 mm (22") 660 mm (26") 760 mm (30") Swing in gap 797 mm (31.37") 892 mm (35.11") 990 mm (38.97") Swing over cross slide 340 mm (13.38") 445 mm (17.51") 548 mm (21.57") Gap width in front of faceplate 270 mm (10.63") Distance between centers 1500 mm (60"), 2300 mm (90"), 3000 mm (120"), 4000 mm (160"), 5000 mm (200") Width of bed 400 mm (15.75") Top slide travel 228 mm (8.98") Cross slide travel 400 mm (15.75") Headstock & Main spindle Spindle nose type D1-11 Spindle center sleeve MT#7 x MT#5 Spindle bore Φ104 mm (4.094") Spindle speed 12 steps Speed range (60 Hz) 4P: 13, 20, 30, 47, 70, 105, 150, 230, 340, 530, 800, 1200 RPM Threads and Feeds Whitworth threads kinds / range 44 Kinds / 2 ~ 72 T.P.I. Metric threads kinds / range 39 Kinds / 0.2 ~ 14 mm Diameter of leadscrew Φ45 mm (1.77") Pitch of leadscrew 4 TPI, P = 6 mm Longitudinal feeds Metric: 0.035 ~ 0.98 mm / rev (P = 6); INCH: 0.0012 ~ 0.039" / rev (4 TPI) Cross feeds Metric: 0.011 ~ 0.296 mm / rev; INCH: 0.0004 ~ 0.0117 / rev Tailstock Quill diameter Φ80 mm (3.15") Quill travel 250 mm (10") Taper of center MT # 5 Motor Main spindle Std.: 15 HP (11.25 kW) Opt.: 20 HP (15 kW) Coolant pump 1/8 HP Measurement Weight Approx 60" 2400 2410 2522 Net weight (KG) 90" 2900 2910 3022 120" 3100 3110 3222 160" 3600 3610 3722 200" 4100 4110 4222 Packing size length 3255 mm (128.14") / 4055 mm (159.64") / 4755 mm (187.2") / 5755 mm (226.57") / 6755 mm (265.94") Width x Height Width: 1200 mm (47.2 "); Height: 1500 mm (59")
